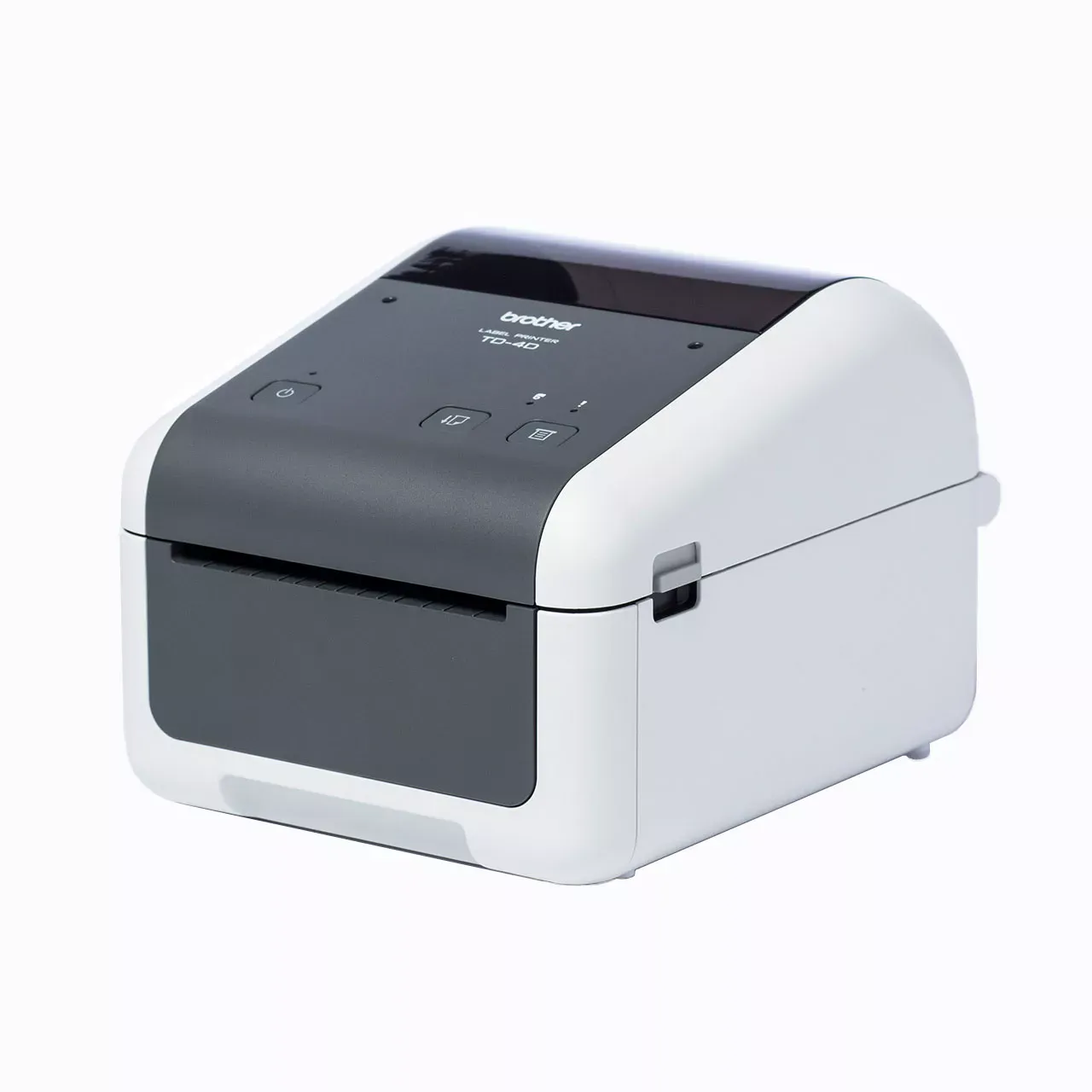

TD-4000
$703.00
| DISPLAY | ||
| LCD | No | |
| LED | 1 (3 color – Green, Red, Orange) | |
| PRINTING | ||
| Print Method | Direct Thermal | |
| Maximum Print Width | 3.9″ (98.6mm) max. | |
| Printable Label Length | 1″ (25.4mm) – 10′ (3m) | |
| 1″ (25.4mm) – 3′ (1m) (ESC/P,P-touch Template) | ||
| Print Speed | USB: | |
| Max. 4.3″ (110 mm) / sec. (Label Transport Speed) | ||
| Max. 92 labels / min.(4″ x 2″ RD Die Cut Label) | ||
| Print Resolution | 300 dpi / 1296 dots | |
| FEATURES | ||
| Cutter | Durable Auto cutter (User irreplaceable) | |
| Time & Date Stamp | PC Generated | |
| Bar Code | Software side:Â CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), POSTNET, Laser Bar Code, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix(ECC200 Square, ECC200 Rectangular), MaxiCode(Model2, Model3, Model4, Model5) | |
| Machine side(*1):Â CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode | ||
| Template Transfer | YES | |
| Memory for transferred data | 99 Templates or 2048KB | |
| Printer control command | Raster mode | |
| ESC/P mode | ||
| P-touch Template mode | ||
| Built in Fonts | Bitmap fonts:Â Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham | |
| Outline fonts:Â Helsinki, Brussels, Letter Gothic | ||
| Built in Font size | Bitmap fonts:Â 24 dots, 32 dots, 48 dots | |
| Outline fonts:Â 33 dots – 400 dots (22 sizes) | ||
| Built in Font style | Outline, Shadow, Outline+Shadow, Italic, Underline, Bold, Vertical | |
| Built in Font widths (ESC/P printing only) | x2 (Width), x2 (Height), x1/2 (Width) | |
| POWER SUPPLY | ||
| Power Supply | Internal S/W Power Supply | |
| SIZE | ||
| Dimensions | 6.8″(W) x 9.0″(D) x 6.2″(H) | |
| 173mm(W) x 229mm(D) x 158mm(H) | ||
| Weight | 4.0 pounds (without RDrolls) | |
| 1.81kg (without RD rolls) | ||
| OTHER | ||
| Temperature | 50°F to 95°F (10°C to 35°C ) | |
| Humidity | 20% to 80% (without condensation) | |
| Paper specification | ||
| Media type | Die cut label, Continuous length label | |
| Media width | 0.7″ – 4.16″ (19 mm – 105.6 mm) | |
| Label width | 0.6″ – 4″ (15 mm – 101.6 mm) | |
| Gap between labels | 0.12″ (3 mm) or more | |
| Media thickness range | Without adhesive: 0.003″ – 0.006″ (0.08 mm – 0.155 mm) | |
| With adhesive: 0.003″- 0.007″ (0.08 mm – 0.170 mm) | ||
| Outside diameter | 4″ (101.6 mm) | |
| Core size | 1″ (25.4 mm) | |
| Media sensor | Transmissive/Gap | |
| PC CONNECTION | ||
| Interface | Windows:Â USB Port (USB Spec. 1.1 or 2.0 protocol), RS-232C, | |
| NOTE | (*1) | |
| QR Code is registered trademark of DENSO WAVE INCORPORATED in JAPAN and other countries. QR Code Generating Program Copyright(C) 2008 DENSO WAVE INCORPORATED. | ||
| BarStar Pro Encode Library (DataMatrix, MaxiCode, PDF417, RSS) Copyright (c) 2007 AINIX Corporation. All rights reserved. | ||
