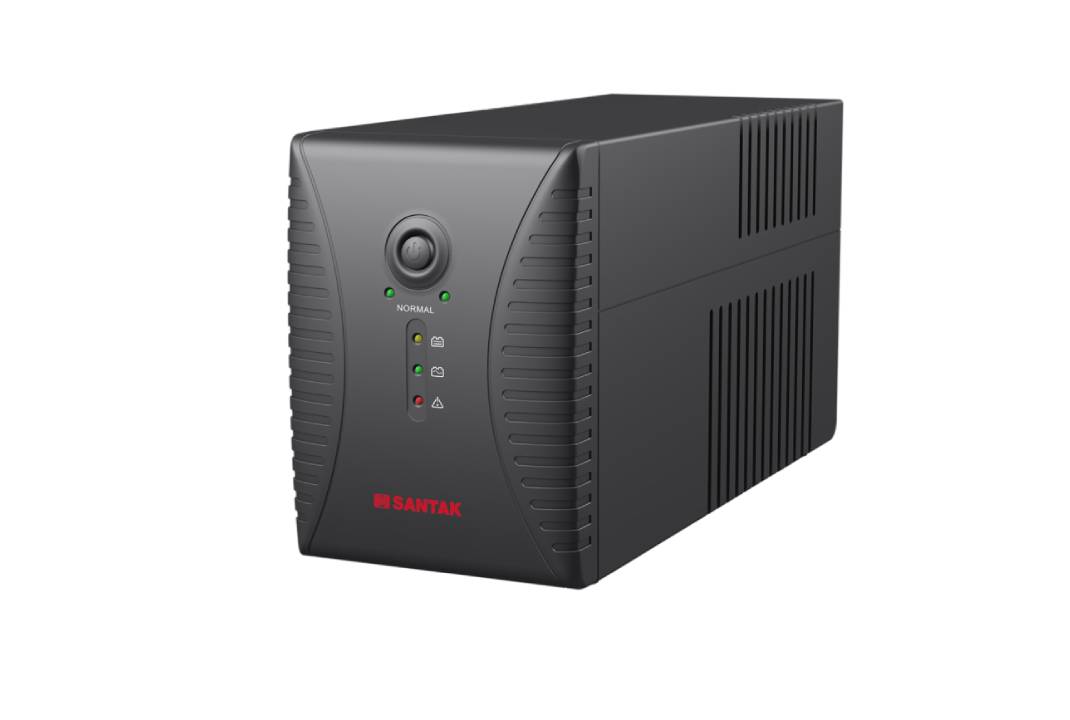

Santak R1200 (Robust Series)

$84.00

•  Build in boost and buck AVR to stabilize output voltage
•  3-steps true AVR stabilization
•  Wide acceptable range of input voltage & frequency(comply with generator)
•  Auto charging even though the UPS is off
•  Auto restart while mains recovery
•  Cold start
•  Full protection against over-discharge, overcharge,overload

Categories: ,

Description

MODEL R1200
POWER RATING VA/W 1200VA/600W
PRODUCT TOPOLOGY PRODUCT TOPOLOGY Line Interactive
INPUT Voltage 230VAC
Voltage Range 140-300VAC
Frequency >40Hz (comply with generator)
OUTPUT Voltage 230VAC
Voltage Regulation (Batt. Mode) +/-10%
Frequency 50Hz
Waveform AC mode:pure sine wave; battery mode:simulated sine wave
Frequency Regulation (Batt. Mode) +/-1 Hz
Transfer time Typical 4-8ms
Receptacles Universal x 4
BATTERY Type VRLA
Configuration 24V/7Ah*2
Recharge time 2-4hours to 90% capacity
BACKUP TIME* 1PC load 30 minutes
PROTECTION Full protection Over discharge,Overcharge, Overload, Short circuit
PHYSICAL Dimension, WxDxH 139 x 365 x 195 mm
Net Weight 9.2kg
ENVIRONMENT Operating Environment Temperature: 0-40°C Relative Humidity: 0-90% (non-condensing)
Noise Level Less than 40dB
