Description
| General | |
| Usage type | Desktop |
| Display | Backlit LCD |
| RAM | 512 MB |
| Connectivity | |
| USB interface | SuperSpeed USB 3.0 (backwards compatible) |
| Dimensions & weights | |
| With carton | WxDxH: 730 mm x 439 mm x 386 mm |
| With carton | 12.33 kg |
| Without carton | WxDxH: 323 mm x 613 mm x 263 mm (Input tray closed) |
| Weight | 9.2 kg |
| Energy Consumption | |
| Operating | 53 watts |
| Ready mode | 17.6 watts |
| Off | 0.3 watts |
| Sleep mode | 2.7 watts |
| Sound pressure | 55 dBA |
| Environment | |
| Operating humidity | 20% – 80% |
| Operating temperature | 5℃ – 35℃ |
| In the box | |

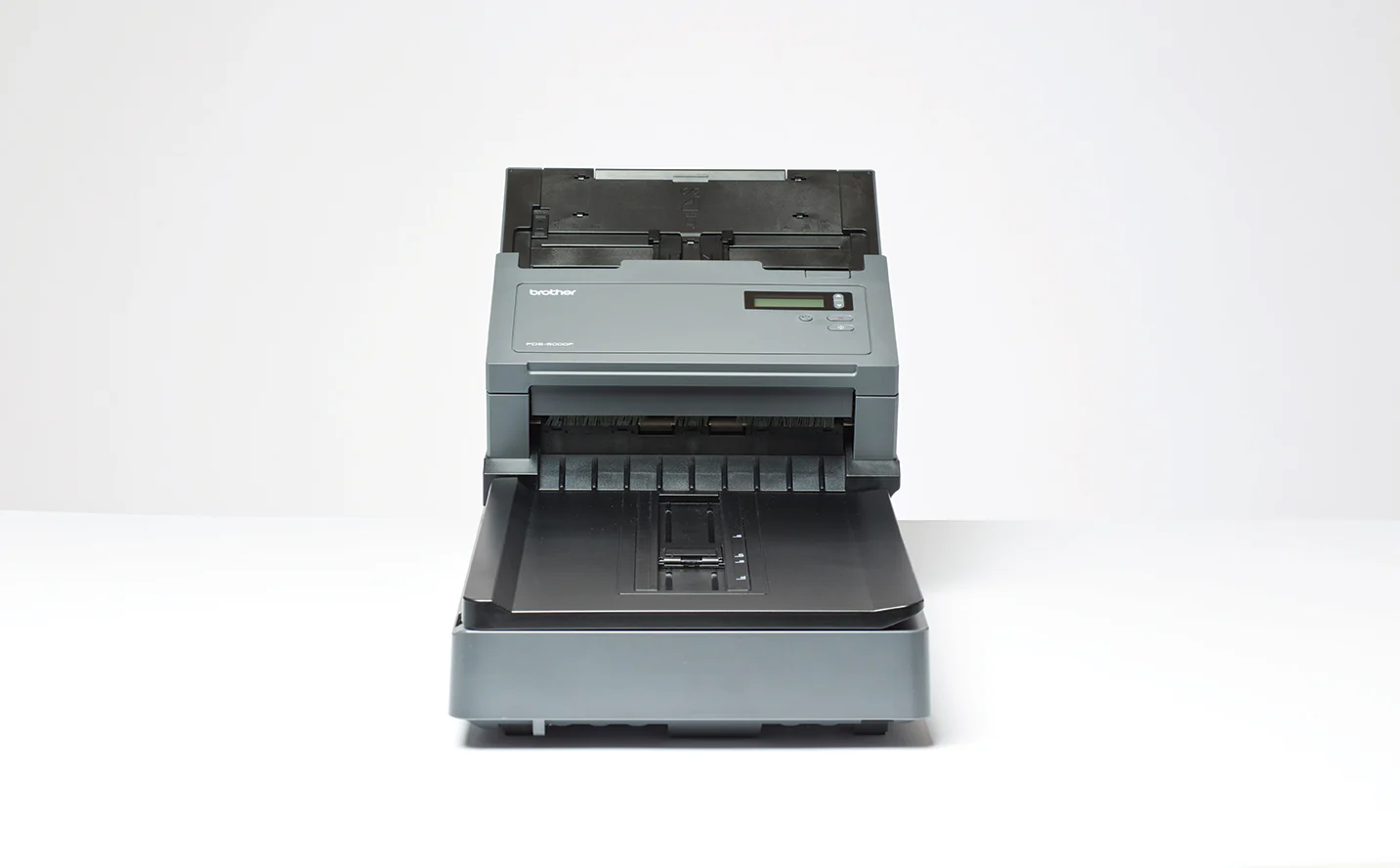

| Others | PDS-5000F machine, AC adapter, AC power supply cord, USB 3.0 cable, setup DVD, Quick Startup Guide, Warranty |
| Media specification | |
| Types and sizes | Plain paper, Business card, Plastic card (embossed, up to 1.25mm |
| Weights | 28-400 gsm |
| ADF media sizes | Document size: ADF: Minimum 51 x 54 mm. Maximum 216 x 356 mm. Long Paper Scanning: Maximum 5994 mm. Plastic card: Maximum 55 x 95 mm. Flatbed: Maximum 216mm x 356mm |
