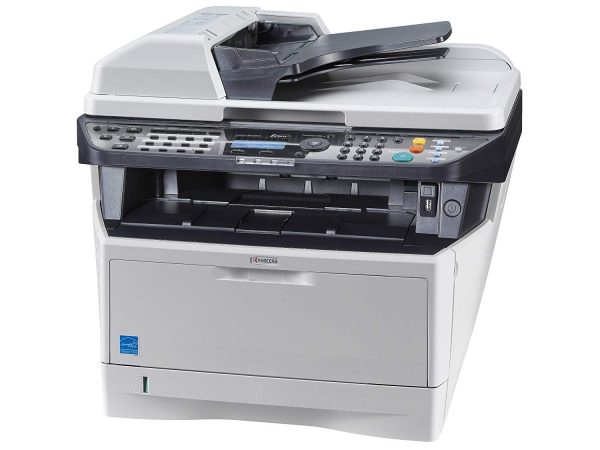

ECOSYS-M2535D

$987.00

  • Up to 35 A4 pages per minute in
  • Time to first copy: 6.9 seconds
  • Double sided print, copy, scan and fax functionality as standard
  • 50 sheet document processor scans double sided originals
  • Up to 2 optional paper feeders for up to 800 sheets
  • High security through SSL, IPsec and Private Print (requires additional memory) functionality
  • Print from and scan to USB flash drive
  • Exceptionally low printing costs in its class
Category:

Description

General type B/W Multifunctional for A4 Format
Technology KYOCERA ECOSYS Laser
Engine speed Up to 35 pages per minute A4
Resolution 1,200 dpi quality (1,800 x 600 dpi, print), 600 x 600 dpi, 256 greyscales (scan/copy)
Warm-up time 20 seconds or less
Time to first print Approx. 7 seconds or less
Time to first copy Approx. 6.9 seconds
Weight Main unit: Approx. 18 kg
Power consumption Copying/Printing: 439 W, Ready-mode: 65 W, Sleep-mode: 3.7 W, Plug-in-off-mode: 0.3 W or less
Power source AC 220 ~ 240 V, 50/60 Hz
Noise (ISO 7779 / ISO 9296) Noise (sound pressure level ISO 7779 / ISO 9296) Copying/Printing: 51.3 dB(A) LpA, Half speed mode: 49 dB(A) lpA, Stand-by: 27.5 dB(A) LpA
Safety standards TÃœV/GS, CE – This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory Standard 512 MB, max. 1,536 MB

Paper Handling

Input capacity 50-sheet multi-purpose tray, 60-220 g/m², A4, A5, A6, B5, Letter, Legal, Folio, envelopes, Custom (70 x 148 to 216 x 356 mm); 250-sheet universal paper cassette, 60-120 g/m², A4, A5, A6, B5 Letter, Legal, Folio, Custom (105 x 148 to 216 x 356 mm)
Max. input capacity with options 800 sheets
Duplex unit Duplex as standard supports 60–105 g/m²
Output capacity 150 sheets face-down
Document processor 50-sheet, Simplex scan 50–120 g/m², Duplex scan 50–110 g/m², A4, A5, B5, Letter, Legal, Custom (140 x 210 to 216 x 356 mm)
Further information All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by Kyocera under normal environmental conditions.

Print

Processor PowerPC 465S / 667 MHz
Controller language PRESCRIBE IIe
Emulations PCL6 (5e/XL), KPDL 3 (PostScript 3-compatible), Line Printer, IBM Proprinter X24E, Epson LQ-850, PDF Direct Print Vers. 1.7, XPS Direct Print (requires memory expansion)
Fonts 93 outline fonts (PCL 6, HP-compatibile) + 8 (Windows Vista), 101 (KPDL3) 1 bitmap font, 45 types of one-dimensional barcodes, plus 1 type of two-dimensional barcode (PDF-417)
Integrated Accounting 100 department codes
Features Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3 and Private Print, IPPS, HTTPS, POP over SSL, AirPrint, SMT over SSL, FTPover SSL, LDAP over SSL
Applicable OS (Print) All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX, LINUX, as well as other operating systems on request.

Copy

Max. original size A4 / Legal
Digital features Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change, copy density control
Exposure modes Auto, manual: 5 steps
Preset magnification ratios 7 Reductions/5 Enlargements
Zoom range 25 – 400 % in 1% steps
Continuous copy 1 – 999
Image adjustments Text + Photo, Text, Photo

Scan

Compression format MMR/JPEG
File type TIFF, PDF, JPEG, XPS, PDF/A
Scan features Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi-send (e-mail, fax, SMB/FTP folder, print) at once
Original recognition Text, Photo, Text + Photo, for OCR
Max. scan size A4 / Legal
Scan functionalities Scan-to-e-mail, Scan-to-FTP (FTP over SSL), Scan-to-SMB, Scan to USB Host, TWAIN (USB), WSD (WIA) scan (USB)
Scan resolution 200, 300, 400, 600 dpi (256 greyscales)
Scan speed 35 ipm (300 dpi, A4, B/W); 14 ipm (300 dpi, A4, colour)

Fax

Compatibility ITU-T Super G3
Modem speed Max. 33.6 kbps
Scanning speed 2.5 seconds
Transmission speed 3 seconds or less
Max. original size A4 / Legal
Compression method JBIG, MMR, MR, MH
Fax features Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast, memory reception

Interfaces

Standard interface USB 2.0 (Hi-Speed), USB Host (High Speed), 10 Base-T/100 Base-TX/1000 Base-T, slot for optional SD card

WARRANTY

Warranty 2-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 100,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
