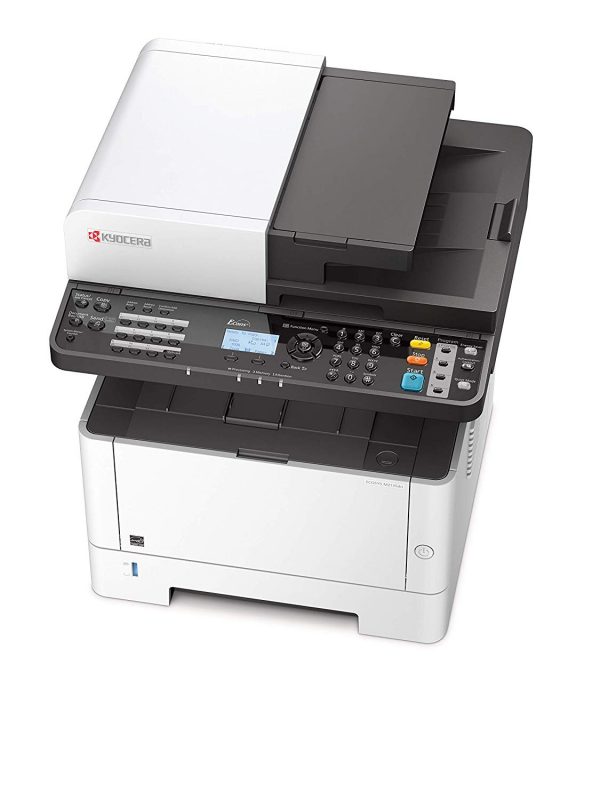

ECOSYS-M2135DN

$697.00

  • Up to 35 pages per minute in A4
  • Time to first copy 6.9 sec.
  • 1200 dpi printing resolution
  • Print, copy and colour scan functionality as standard
  • Duplex unit for cost-saving double-sided printing
  • Copy double-sided ID cards on a single sheet of paper with ease
  • Compact design with low-noise printing
  • Exceptionally low printing costs in its class
Category:

Description

General type Black and white Multifunctional for A4 format
Technology KYOCERA ECOSYS Laser
Engine speed Up to 35 pages A4 per minute
Resolution 300 dpi, 600 dpi, 1,200 dpi
Warm-up time Approx. 17 seconds or less
Time to first print Approx. 6.8 seconds or less
Time to first copy Approx. 6.9 seconds or less
Dimensions (W x D x H) Main unit: 417 x 412 x 437 mm
Weight Main unit: Approx. 19 kg
Power consumption Copying/Printing: 661 W, Ready-mode: 21 W, Sleep-mode: 1 W,
Power source AC 220 ~ 240 V, 50 Hz
Noise (ISO 7779 / ISO 9296) Noise (Sound pressure level: ISO 7779/ISO 9296): Copying/Printing: 47.2 dB(A) LpA, Quiet mode: 44.1 dB(A) LpA, Stand-by (Ready-mode): Immeasurably low Sleep mode: Immeasurably low
Safety standards TÃœV/GS, CE – This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
General memory Standard 512 MB, max. 1,536 MB

Paper Handling

Input capacity 100-sheet multi-purpose tray; 60 – 220 g/m²;A4, A5, A6, B5, B6, Letter, Legal, Custom (70 x 148 mm – 216 x 356 mm) 250-sheet universal cassette; 60 – 163 g/m²; A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 – 216 x 356 mm).
Max. input capacity with options 850 sheets
Duplex unit Duplex functionality as standard: Double-sided printing: 60 – 163 g/m²; A4, A5, B5, Letter, Legal
Output capacity Max. 150 sheet face down with paper full detection
Document processor Document processor: 50-sheet, 50 – 160 g/m², A4, A5, A6, B5, B6, Letter, Legal, Custom (100 x 148 to 216 x 356 mm)
Further information All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

Print

Processor 800 MHz
Controller language PRESCRIBE IIe
Emulations PCL 6 (PCL 5e/PCL-XL), PostScript 3 (KPDL 3), PDF Direct Print, XPS/OpenXPS
Fonts 93 scalable fonts for PCL6/KPDL3, 8 fonts for Windows Vista, 1 bitmap font, 45 barcodes (e.g. EAN8, EAN13) with automatic generation of checksums as well as support of two-dimensional barcodes PDF-417 under PRESCRIBE (PCL and other barcodes available as an option)
Applicable OS (Print) All current Windows operating systems, MAC OS X Version 10.5 or higher, Unix, Linux as well as other operating systems on request

Copy

Max. original size A4(Platen)/Legal(DP)
Digital features Scan-once-copy-many, electronic sort, 2in1, 4in1, ID-card copy, priority print, program, continuous scan, auto cassette change, copy density control
Exposure modes Manual: 9 steps
Preset magnification ratios 7 Reductions/5 Enlargements
Zoom range 25 – 400 % in 1% steps
Continuous copy 1 – 999 (when optional memory installed)
Image adjustments Text + Photo, Photo, Text, Map

Scan

Compression format MMR/JPEG
File type TIFF, PDF, PDF/A-1 , high compression PDF, encrypted PDF, JPEG, XPS
Scan features Integrated address book, LDAP, encrypted data transfer, Blank sheet skip
Original recognition Text + Photo, Photo, Text, Light Text/Fine Line, Text (for OCR)
Max. scan size A4(Platen), Legal(DP)
Scan functionalities Scan-to-e-mail (SMTP), Scan-to-FTP (FTP over SSL), Scan-to-SMBv3, Scan to USB Host, TWAIN scan (USB, network), WSD (WIA) scan (USB, network)
Scan resolution 300dpi x 300dpi, 200dpi x 200dpi(Default) , 200dpi x 100dpi , 600dpi x 600dpi , 400dpi x 400dpi , 200dpi x 400dpi
Scan speed 40 ipm (300 dpi, A4, b/w); 23 ipm (300 dpi, A4, colour)

Interfaces

Standard interface USB 2.0 (Hi-Speed), USB Host (High Speed), 10 Base-T/100 Base-TX/1000 Base-T, Slot for optional SD/SDHC-Card

WARRANTY

Warranty 2-year warranty (depending on the country) as standard. KYOCERA guarantees the drum and developer for 3 years or 100,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions.
