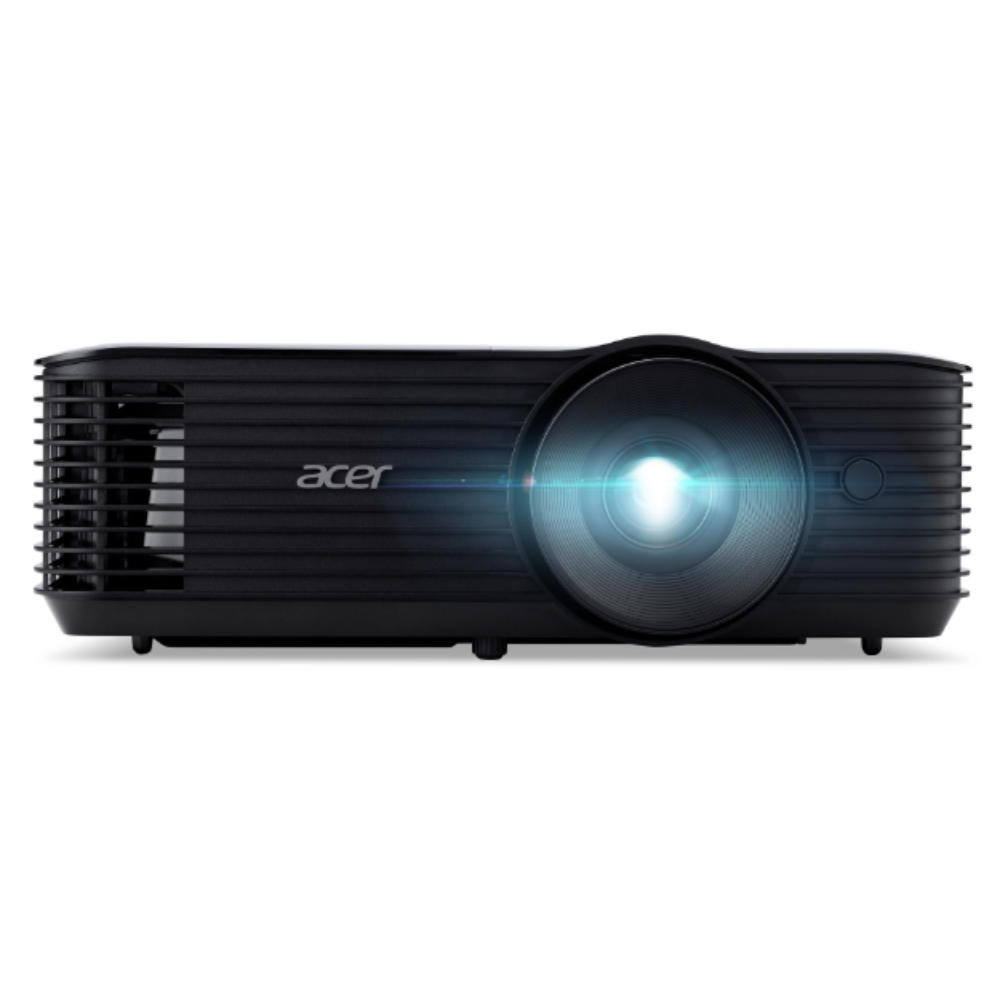

Acer Projector X1226AH
$480.00
Native Resolution:Â XGA (1,024 x 768)
Maximum Resolution:
Standard Mode Brightness: 4000lm
Native Aspect Ratio: 4:3
Compatible Aspect Ratio: 16:9
Contrast Ratio: 20,000:1
Throw Ratio: 1.94 to 2.16 (1295.40mm @ 2000mm)
Digital Zoom: 2x
Vertical Keystone Correction: -40°/+40°
Maximum Vertical Sync: 120 Hz
Maximum Horizontal Sync: 100 kHz
Minimum Vertical Sync: 24 Hz
Minimum Horizontal Sync: 15 kHz
Colour Supported: 1.07 Billion Colors (30-bit)
PROJECTION LENS
Minimum Lens Aperture: F/2.41
Maximum Lens Aperture: F/2.53
Minimum Focal Length: 21.85 mm
Maximum Focal Length: 24.01 mm
Minimum Diagonal Image Size: 584.20 mm
Maximum Diagonal Image Size: 7.62 m (300″)
Minimum Projection Distance: 1 m
Maximum Projection Distance: 11.80 m
Optical Zoom: 1.1x
LAMP
Lamp Type: OSRAM
Number of Lamps: 1
Lamp Power: 220 W
Normal Mode Lamp Life: 6000 Hour
Economy Mode Lamp Life: 7000 Hour
ExtremeEco Mode Lamp Life: 10000 Hour
INTERFACES/PORTS
HDMI: Yes
Number of USB Ports: 1
USB: Yes
Composite Video: Yes
Number of VGA Inputs: 1
VGA In: Yes
Number of VGA Outputs: 1
VGA Out: Yes
Number Of Audio Inputs: 1
Number Of Audio Outputs: 1
Audio Line In: Yes
Audio Line Out: Yes
Total Number of HDMI Ports: 1
TECHNICAL INFORMATION
Projection System: DLP
Projection Method:
Ceiling
Front
Rear
Rear Ceiling
Video Compatibility:
EDTV
HDTV
NTSC
PAL
SDTV
SECAM
Computer Compatibility:
Mac PC
Windows PC
AUDIO
Number of Speakers: 1
Speaker Output Power: 3 W
Speaker Output Mode: Mono
POWER DESCRIPTION
Power Supply: 100 V AC~240 V AC
Input Voltage:
120 V AC
230 V AC
Operating Power Consumption: 275 W
PHYSICAL CHARACTERISTICS
Temperature: 0°C to 40°C
Humidity: 80% Maximum Relative Humidity
Weight (Approximate): 2.80 kg
Form Factor: Ceiling Mountable
Height: 113.7 mm
Width: 313 mm
Depth: 240 mm
MISCELLANEOUS
Optional Accessories:
Carrying Case (MC.JPV11.005)
3D Glasses (MC.JFZ11.00B)
Lamp (MC.JQH11.005)
WirelessCAST (MWA3) (MC.JKY11.007)
Ceiling Mount (MC.JLC11.003)
